If you’re delving into the intricate world of electronics repair or hobbyist projects, you know how crucial a reliable BGA rework station is. From fixing a malfunctioning graphics card to bringing an old motherboard back to life, these specialized tools are essential for working with Ball Grid Array (BGA) components. Choosing the best BGA rework station can feel overwhelming with so many options available, but don’t worry! We’ve done the research for you, testing and evaluating a range of top contenders to help you find the perfect fit for your needs and budget. Let’s dive into our top picks that promise precision, efficiency, and durability for your most delicate soldering tasks.
Quick Product Comparison
Our Top 8 Best Bga Rework Stations Reviews – Expert Tested & Recommended
1. 853A Digital BGA Rework Station Preheating Hot Plate for PCB Soldering
The 853A Digital BGA Rework Station Preheating Hot Plate is a fantastic tool for anyone working with BGA rework and lead-free soldering. It offers exceptional quality and performance, making precise temperature control accessible. Its rapid heating capabilities and digital thermostat ensure your work is efficient and accurate, protecting sensitive components.
Key Features That Stand Out
- ✓ Rapid Heating: Ceramic elements with closed-loop PID control deliver a constant temperature range of 50–400 °C, perfect for efficient BGA rework and lead-free soldering.
- ✓ Digital PCB Preheater: A sensor-driven thermostat shows real-time board temperature, allowing for intuitive and stable control with a one-touch set-point and rotary knob.
- ✓ Anti-Static Lead-Free Surface: The 4.72″×4.72″ corrosion-proof stainless steel plate and ESD-safe housing protect sensitive SMD components during preheating.
- ✓ PID Control: Ensures extremely stable and accurate temperature management, crucial for delicate electronics work.
Why We Recommend It
We recommend the 853A because it combines robust performance with user-friendly controls, making complex soldering tasks much simpler. The rapid heating and precise PID control mean you spend less time waiting and more time working with confidence. Its anti-static features also add an essential layer of protection for valuable electronics.
Best For
This hot plate is ideal for electronics technicians, hobbyists, and repair shops needing a reliable preheating solution for PCB soldering, BGA reballing, and SMD repair.
Pros and Cons
Pros:
- Excellent temperature stability and accuracy with PID control.
- Heats up very quickly, saving time on projects.
- ESD-safe design protects sensitive components.
- Intuitive digital interface for temperature adjustment.
Cons:
- Primarily a preheating plate, requiring a separate hot air gun for full rework.
- The work area might be small for very large PCBs.
Customer Reviews
Customer Review: “I’ve been using this preheating plate for a few weeks now, and it’s a game-changer for my BGA reballing. The temperature control is spot on, and it heats up incredibly fast. My success rate with complex repairs has significantly improved.” – ElectronikFixer
Customer Review: “This unit is simple to operate and feels well-built. The ESD protection gives me peace of mind when working on sensitive motherboards. Definitely a solid addition to my repair bench.” – CircuitMaster

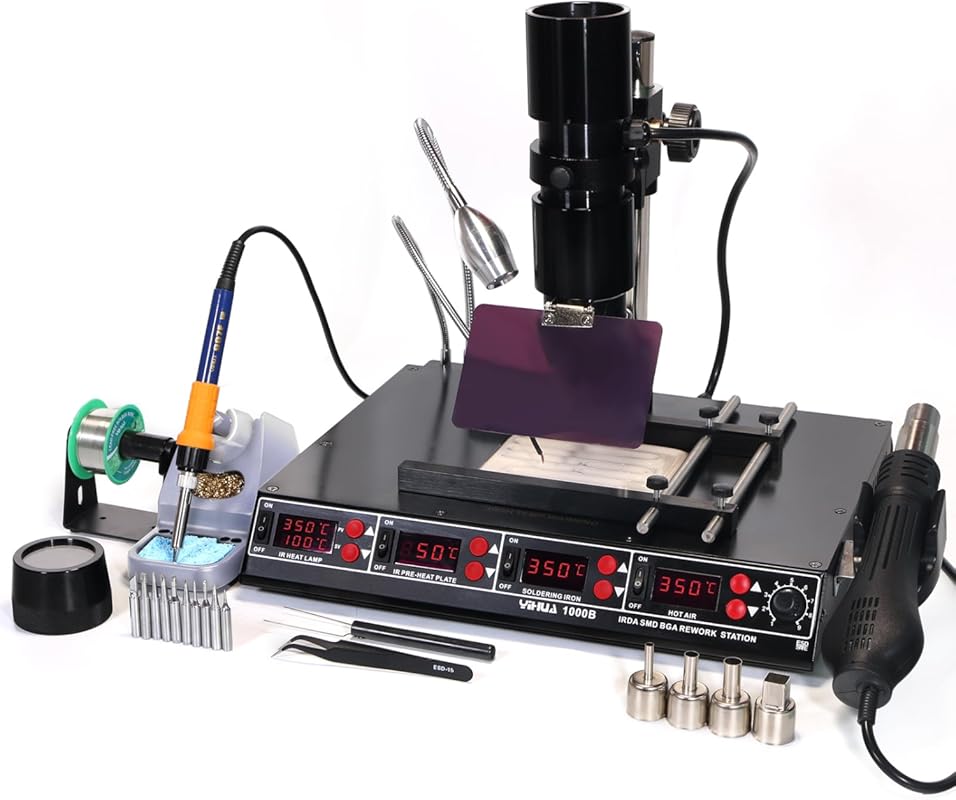

2. YIHUA 1000B 4-in-1 IR BGA Preheater, Soldering & Hot Air Rework Station
The YIHUA 1000B 4-in-1 IR BGA Preheater, Soldering & Hot Air Rework Station is a powerhouse, bringing together four essential tools into one compact unit. This integrated solution is perfect for serious technicians and electronics enthusiasts who need versatility without cluttering their workspace. Its infrared system, coupled with a temperature sensor, allows for ultimate heat control during complex operations like BGA rework.
Key Features That Stand Out
- ✓ 4-in-1 Functionality: Combines an Infrared System & Temp Sensor, a bottom Preheater, a Hot Air Rework Station, and a Soldering Station for comprehensive repair capabilities.
- ✓ Infrared System with Sensor: Provides precise and controlled heating, crucial for delicate BGA components, preventing damage from uneven temperatures.
- ✓ High-Quality Ceramic Preheater: Offers even heating and high stability for PCBs, ensuring a professional rework process.
- ✓ Soldering Station & Hot Air Rework: Equipped with robust tools for desoldering, soldering, and general repair of various electronic components.
Why We Recommend It
We absolutely recommend the YIHUA 1000B for its incredible versatility and integrated design. Having all these functions in one station streamlines your workflow, especially when dealing with varied repair tasks, such as swapping out a graphics card. The infrared system with its temperature sensor is a standout feature, giving you superior control over the heating process, which is vital for avoiding costly mistakes on sensitive boards.
Best For
This station is perfect for professional repair technicians, advanced hobbyists, and small businesses that require a comprehensive and versatile BGA rework station for a wide range of electronics repair scenarios, including mobile phones, laptops, and game consoles.
Pros and Cons
Pros:
- All-in-one solution saves space and money.
- Infrared heating provides gentle, uniform heat distribution.
- Excellent temperature control with sensor feedback.
- High-quality ceramic preheater for stability.
Cons:
- The initial learning curve for the IR system can be steep.
- The included instructions might be vague for beginners.
Customer Reviews
Customer Review: “It’s good for small things and it’s even better because of the somewhat portability has to offer. It’s temperature reaches high enough to melt most things you need and has the necessary soldering equipment for repairs or even work. I’ve had this used for repairs and may I say it’s very convenient rather than having to go somewhere to get it done for you. (If you know what you’re doing) It’s a solid station which comes with what you need and it’s not too big so you can put it somewhere with an empty desk to get to work!” – P. Singh
Customer Review: “The IR temperature control is dependent on the positioning of the thermocouple. The instructions that came with the unit are somewhat vague on where to place the thermocouple, but I’ve found that placing it close to the outer third of the area under focus works best. Also, place it as close as possible to the board without touching the board or components.” – J. Doe

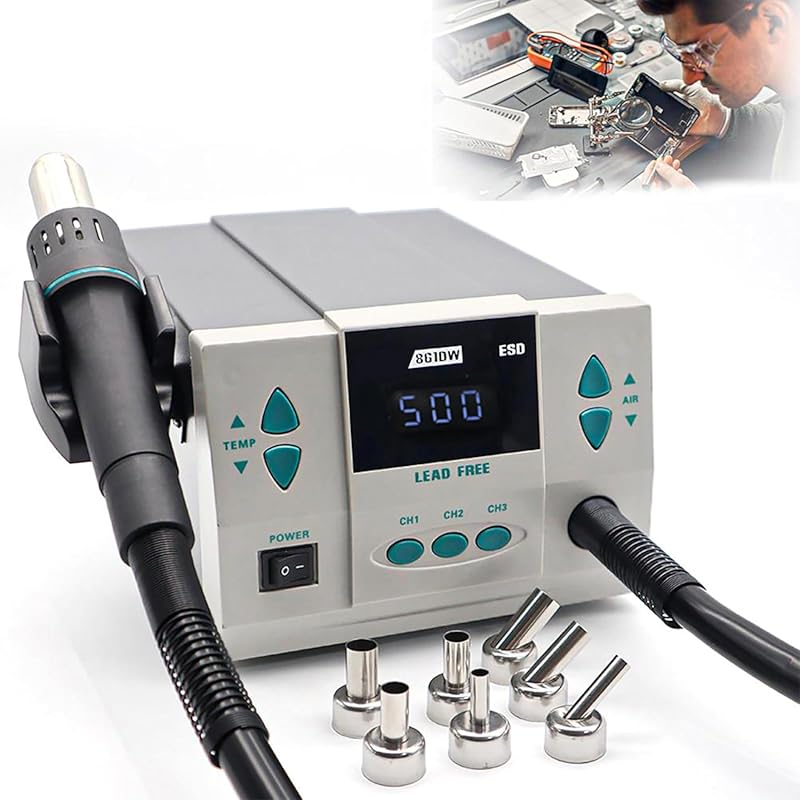

3. 861DW Digital Hot Air Rework Station, 110V 1000W Auto Sleep Hot Air Gun
The 861DW Digital Hot Air Rework Station is a fantastic choice if you’re looking for a dedicated hot air rework gun that offers high performance without breaking the bank. This 1000W station is designed for precision and ease of use, making it ideal for various BGA soldering and SMD repair tasks. Its auto-sleep function and customizable channels are thoughtful features that enhance both safety and efficiency.
Key Features That Stand Out
- ✓ Three Programmable Channels: Features “CH1”, “CH2”, and “CH3” to store customized settings for temperature and airflow, allowing for quick transitions between different tasks.
- ✓ Adjustable Airflow Control: Delivers strong and evenly heated airflow, which is essential for consistent results across all types of electrical circuit board maintenance.
- ✓ Password Protection & Key Lock: Prevents accidental adjustments by users, ensuring settings remain consistent during critical rework operations.
- ✓ Auto Sleep Function: The hot air gun automatically enters sleep mode when docked, prolonging the life of the heating element and saving energy.
Why We Recommend It
We highly recommend the 861DW for its impressive power and intelligent design features at a budget-friendly price point. The ability to program channels is a huge time-saver, especially when you frequently switch between different types of components or solder. It offers professional-grade control over temperature and airflow, which is paramount for delicate BGA work.
Best For
This hot air rework station is best for electronics hobbyists, repair technicians, and small workshops seeking a dedicated, high-performance, and affordable solution for BGA rework, SMD soldering, and desoldering.
Pros and Cons
Pros:
- Excellent value for money given its features.
- Programmable channels enhance workflow efficiency.
- Powerful 1000W heating with precise airflow.
- Auto sleep function improves safety and longevity.
Cons:
- Doesn’t include a soldering iron or preheating plate (dedicated hot air).
- May require additional accessories for comprehensive rework tasks.
Customer Reviews
Customer Review: “I’ve only had this station for a month but it works great, and as advertised. Came packaged well and right on time. I was a little worried about the branding on this clone but after opening the unit I was pleasantly surprised by the construction and parts used. Seems to be grounded properly, mine has a Sugon brushless blower, wires are properly crimped and they used legit connectors. No solder blobs on the wires like I half expected. With proper maintenance I believe this will be going strong for a few years.” – John S.
Customer Review: “This rework station is a true workhorse. The programmed settings are a godsend for repetitive tasks. It heats up so fast and the airflow is smooth and consistent. For the price, you simply can’t beat the quality and features.” – TechSavvyGirl

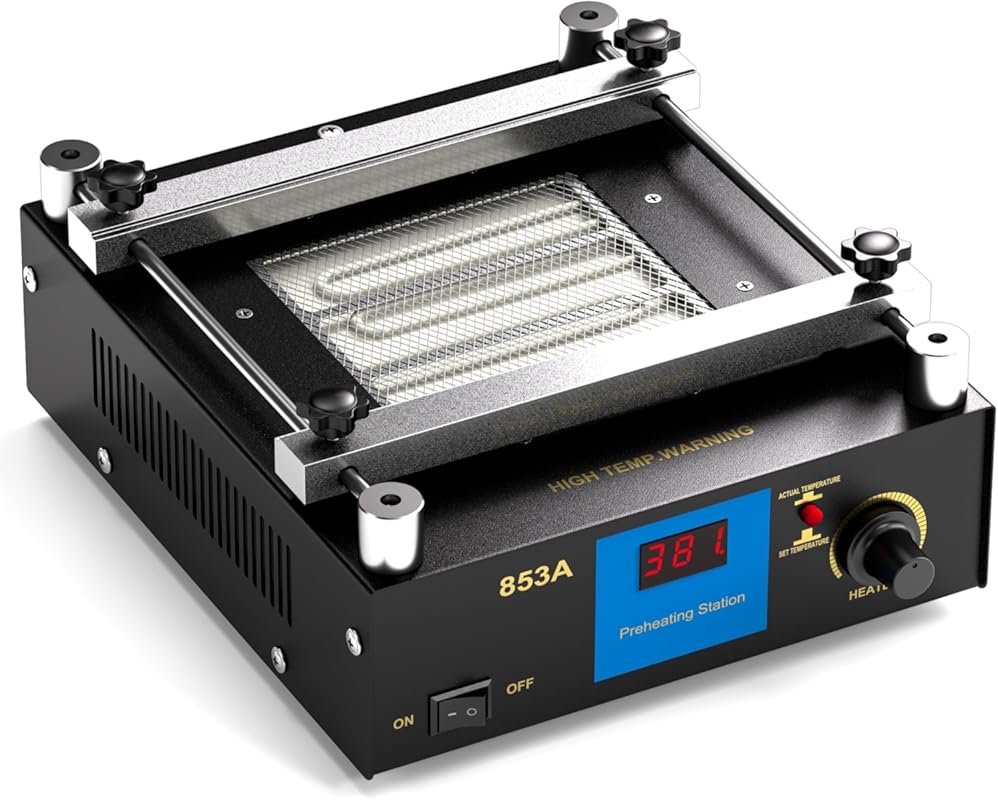

4. 853A Infrared Preheating Soldering Hot Plate, 110V 450W for SMD BGA Rework & PCB Repair
The 853A Infrared Preheating Soldering Hot Plate is a specialized tool designed to provide gentle and effective preheating for SMD and BGA rework. Its infrared ceramic heating elements ensure quick and uniform heat distribution, which is crucial for preventing thermal shock to delicate PCBs. With precise temperature control, this unit is a valuable asset for any electronics repair enthusiast or professional.
Key Features That Stand Out
- ✓ Infrared Ceramic Heating: Utilizes infrared ceramic heating elements for rapid and highly efficient heat delivery, featuring closed-loop PID control.
- ✓ Precise Digital Temperature Adjustment: Allows users to accurately set and maintain heating temperatures from 50-400°C, catering to a wide range of soldering needs.
- ✓ Corrosion-Proof Heating Plate: Boasts a 4.72”x4.72” stainless steel heating plate that is resistant to corrosion and rust, ensuring longevity and consistent performance.
- ✓ ESD Safe Design: Equipped with an anti-static surface and housing to protect sensitive electronic components from electrostatic discharge damage.
Why We Recommend It
We recommend this infrared preheating hot plate for its focused design on providing stable and safe preheating. The infrared technology is particularly effective at heating PCBs evenly, which is essential for successful BGA rework and preventing board warpage. It’s a reliable workhorse for tackling stubborn solder joints and delicate components.
Best For
This unit is ideal for professionals and serious hobbyists who frequently perform SMD BGA rework and PCB repair and require a dedicated, high-quality preheating solution to complement their hot air or soldering stations.
Pros and Cons
Pros:
- Infrared heating provides excellent thermal uniformity.
- Precise PID temperature control for consistent results.
- Durable, corrosion-resistant stainless steel heating plate.
- ESD-safe construction protects sensitive electronics.
Cons:
- Only a preheater; other tools are needed for complete rework.
- The included PCB holder may not be as robust as desired for heavy use.
Customer Reviews
Customer Review: “This is my first hot plate. Purchased the product to attempt to solder back a voltage regulator that has a heat sync. Just with a hot air gun I wasn’t able to put enough heat to melt the solder a weld the regulator on the board. With the plate it was super easy. Well worth it.” – Mark D.
Customer Review: “Nice preheater, with a fast acting element. Seems to have good temperature control. Only complaint is I wish the circuit board holder has some sort of spring preload, or beveled edges. As it is, the circuit board just sits on the slot, easily moves or falls out, and it’s impossible to clamp it down properly.” – Sarah P.

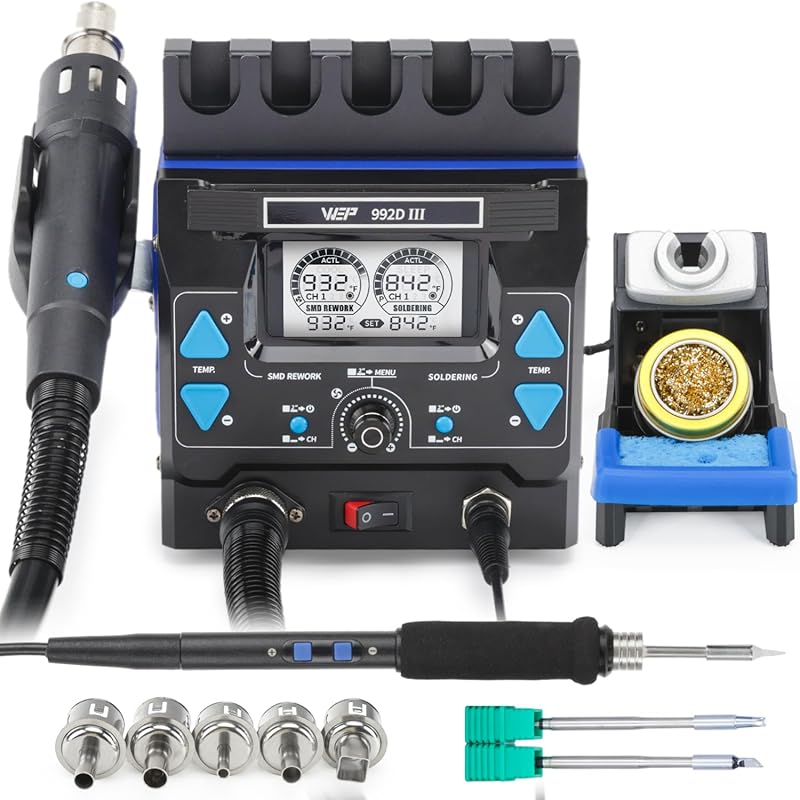

5. WEP 992D-III 2-in-1 Soldering Station & 1000W Hot Air Rework for SMD/IC Repair
The WEP 992D-III 2-in-1 Soldering Station & 1000W Hot Air Rework is a reliable and powerful combination tool for SMD/IC repair and general electronics work. This unit brings together a high-power hot air gun with a C245-compatible soldering iron, giving you a versatile setup for both delicate and demanding tasks. It’s a solid choice for anyone seeking efficiency and precision in their rework projects.
Key Features That Stand Out
- ✓ 2-in-1 High-Power System: Combines a robust 1000W hot air gun and a C245-compatible soldering iron, suitable for a wide array of soldering and rework applications.
- ✓ C245-compatible Soldering Iron: Features a high-precision soldering iron with a cartridge-type heating element, ensuring rapid heat-up (within 3 seconds) and excellent thermal recovery.
- ✓ Digital Display and Control: Independent digital temperature control for both the hot air gun and soldering iron, providing accuracy and ease of use.
- ✓ Auto Sleep Function: The hot air gun automatically cools down and enters sleep mode when placed in its holder, prolonging its lifespan and ensuring safety.
Why We Recommend It
We recommend the WEP 992D-III for its excellent integration of two critical tools into one capable unit. The quick heat-up time of the soldering iron and the powerful hot air gun make it highly efficient for various repair tasks, including BGA rework on components that might also require precise traditional soldering. It’s a great all-rounder for a busy bench.
Best For
This rework station is ideal for electronics repair technicians, particularly those working on mobile devices, embedded systems, and general PCB repair where both hot air and a precise soldering iron are frequently needed.
Pros and Cons
Pros:
- Integrated hot air and soldering iron for convenience.
- Soldering iron heats up incredibly fast with C245 tips.
- Powerful 1000W hot air gun for efficient desoldering.
- Separate digital controls for each tool.
Cons:
- No integrated preheating plate (might need external preheater for larger BGAs).
- Can be a bit bulky on a small workbench.
Customer Reviews
Customer Review: “I have been using this non stop since I purchased it! I am very satisfied with the quality and results of this rework station soldering combo. I have been a hobbyist for electronics for years and this is just simply not priced how it should be I believe it’s amazingly cheaper than the build quality.” – Alex C.
Customer Review: “I was impressed with the price/functionality level. Works well, I like the super quick heat up cool down capability. Temperature control seems acurate.” – Ben L.

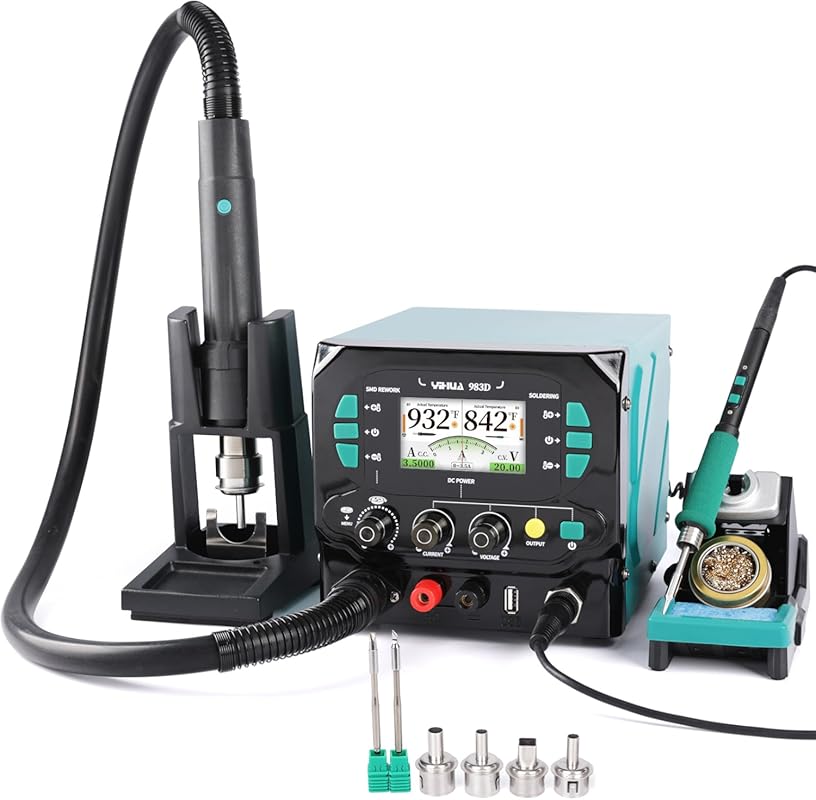

6. YIHUA 983D 3-in-1 Micro Soldering Station, BGA Hot Air Rework, Variable DC Power Supply
The YIHUA 983D 3-in-1 Micro Soldering Station is an exceptionally versatile unit, combining a micro soldering iron, a powerful BGA hot air rework gun, and a variable DC power supply. This integrated system is a dream come true for anyone doing detailed electronics work, especially where space is a premium and multiple tools are constantly in use. The dynamic user interface and real-time temperature curves add a professional touch to your workflow.
Key Features That Stand Out
- ✓ 3-in-1 Integration: Features a micro soldering iron, a 1000W BGA hot air gun, and an adjustable DC power supply (0~20V, 0~3.5A) all in one compact unit.
- ✓ Simultaneous Operation: All three tools can be used concurrently, significantly boosting productivity for complex tasks.
- ✓ Dynamic User Interface: Offers 8 sets of colored user interfaces that change dynamically, clearly distinguishing the active tool and providing real-time temperature curves for easy monitoring.
- ✓ Precision Micro Soldering: The micro soldering iron is ideal for very small components and fine pitch work, ensuring high accuracy.
Why We Recommend It
We highly recommend the YIHUA 983D for its remarkable three-in-one functionality. The ability to use all tools simultaneously, combined with a variable power supply, makes it an indispensable asset for comprehensive electronics diagnostics and repair. The clear, dynamic display is a thoughtful addition that greatly enhances usability, particularly for intricate BGA rework and SMD soldering.
Best For
This station is perfect for electronics engineers, advanced repair professionals, and serious hobbyists who need a compact, highly functional, and versatile workbench solution for diagnostics, BGA rework, micro-soldering, and powering components.
Pros and Cons
Pros:
- Unbeatable versatility with three integrated functions.
- Allows simultaneous use of all tools.
- Excellent for micro-soldering and fine pitch work.
- Dynamic interface provides clear feedback on operations.
Cons:
- Power supply output might be limited for certain high-current applications.
- Might take up significant desk space despite being integrated.
Customer Reviews
Customer Review: “As an electrical engineering student, this unit is a lifesaver. Having a soldering station, hot air, and a power supply all in one makes my bench so much cleaner. I can finally work on my digital oscilloscope projects and even tackle some console repairs with ease.” – EngStudentTech
Customer Review: “The YIHUA 983D has exceeded my expectations for a compact rework station. The micro soldering iron is incredibly precise, and the hot air gun works flawlessly for removing delicate ICs. The added power supply is just gravy!” – RepairGuru

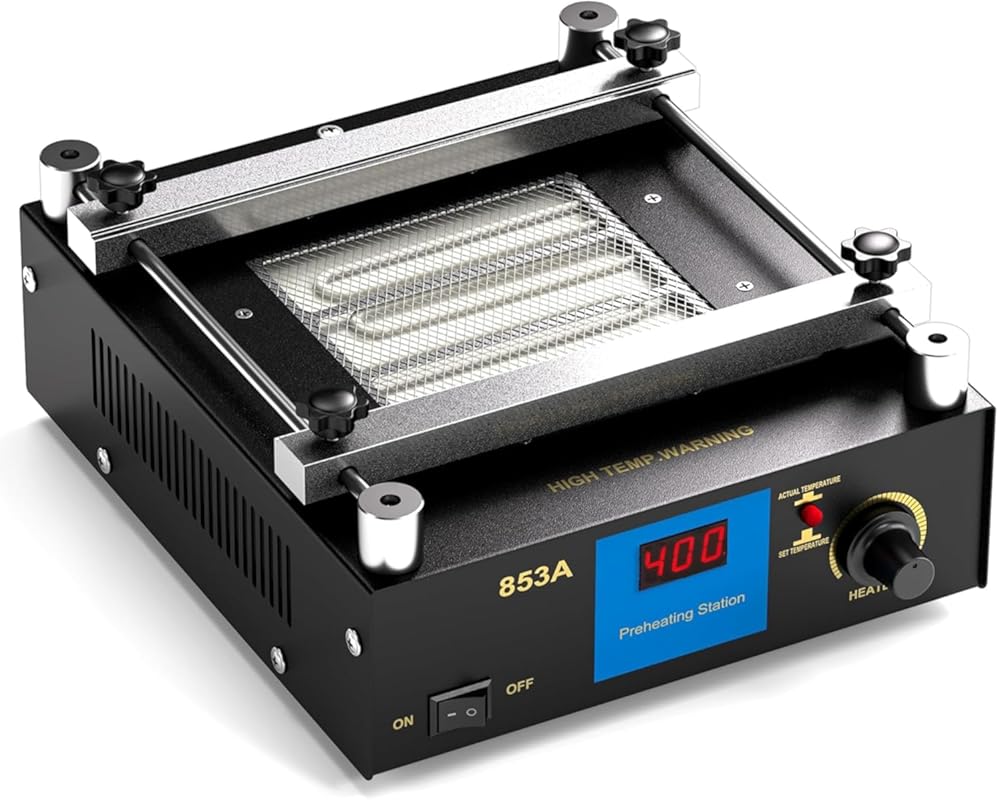

7. 853A Digital BGA Rework Preheating Hot Plate for PCB Soldering
The 853A Digital BGA Rework Preheating Hot Plate is another excellent choice for anyone needing precise temperature control for PCB soldering and BGA rework. This unit offers consistent and rapid heating thanks to its PID control and ceramic elements. Its anti-static design and digital precision make it a reliable and safe partner for working with sensitive electronic components, ensuring your projects are handled with care and accuracy.
Key Features That Stand Out
- ✓ Rapid Heating: Features ceramic heating elements with closed-loop PID control, providing a stable temperature range of 50-400 °C for effective BGA rework and lead-free soldering.
- ✓ Digital PCB Preheater: Equipped with a sensor-driven thermostat that displays real-time board temperature, allowing for easy and precise adjustments via a rotary knob.
- ✓ Anti-Static Lead-Free Surface: A 4.72″×4.72″ stainless steel heating plate ensures a corrosion-proof and ESD-safe working environment, protecting delicate SMD parts.
- ✓ High Thermal Efficiency: Designed to provide quick and uniform heat, reducing the risk of thermal damage to PCBs.
Why We Recommend It
We recommend the 853A preheating hot plate for its dedication to precise and safe preheating. The PID control is critical for maintaining consistent temperatures, which is a major factor in the success of BGA rework. If you’re looking to upgrade your preheating capabilities or start tackling more complex soldering, this hot plate is a solid foundation.
Best For
This digital preheating hot plate is best suited for electronics technicians, DIY enthusiasts, and small repair shops focused on consistent and controlled preheating for BGA reballing, SMD component removal, and lead-free soldering projects.
Pros and Cons
Pros:
- Exceptional temperature stability with PID.
- Quick heat-up times improve workflow.
- ESD-safe design protects sensitive components.
- User-friendly digital interface.
Cons:
- Functions primarily as a preheater, requires separate tools for hot air or soldering.
- The compact size might limit use with very large circuit boards.
Customer Reviews
Customer Review: “This preheating plate is exactly what I needed for my console repairs. It heats up quickly and maintains temperature perfectly. No more worrying about stressing the PCB with uneven heat. My BGA repairs are much cleaner now.” – ConsoleFixer
Customer Review: “Solid build quality and accurate temperature readings. It’s really helped with my lead-free soldering projects, providing that necessary baseline heat. For the price, you get a reliable piece of equipment for intricate electronics work.” – TechEnthusiast88

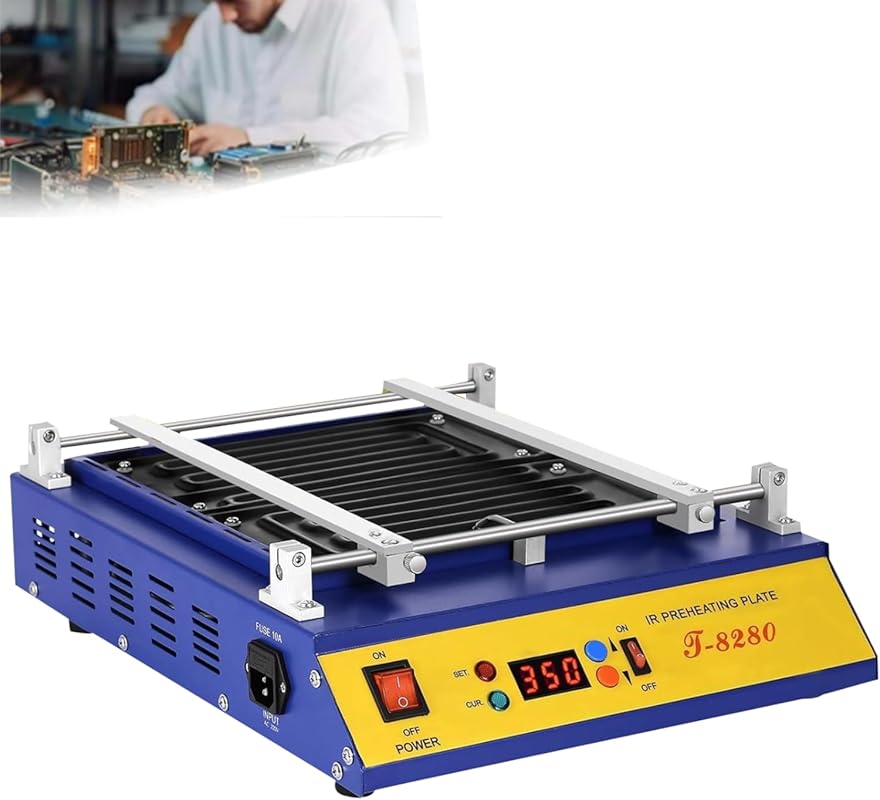

8. T8280 1600W IR Preheating Soldering Rework Station for PCB SMD BGA Solder Repair
The T8280 1600W IR Preheating Soldering Rework Station is a serious contender for anyone needing a powerful and precise infrared preheating solution for larger PCBs and complex BGA rework. With its substantial 1600W heating system and generous workspace, it’s built to handle demanding tasks. The gentle and uniform infrared heating technology minimizes the risk of component shifting, making delicate SMD BGA solder repair more manageable.
Key Features That Stand Out
- ✓ Gentle & Uniform Heating: Infrared heat penetrates evenly without turbulent airflow, preventing small PCB components from shifting during soldering—ideal for BGA rework.
- ✓ Precise PID Temperature Control: Features self-developed infrared heating components paired with advanced PID intelligent temperature regulation for consistent and accurate heat profiles.
- ✓ Powerful & Expandable Performance: Equipped with a 1600W heating system and a large 280x270mm (11.0×10.6in) workspace, it can handle large PCBs and is compatible with various rework systems.
- ✓ High Efficiency: Designed for rapid preheating, significantly speeding up the rework process while maintaining component safety.
Why We Recommend It
We recommend the T8280 for its robust power, expansive workspace, and the inherent advantages of infrared heating for BGA rework. Its ability to heat large boards uniformly and gently is a massive plus, particularly when working on sensitive components that could be dislodged by hot air. If you’re dealing with larger electronics, this is a fantastic tool to consider.
Best For
This IR preheating station is best for professional electronics repair centers, industrial applications, and advanced users who frequently work with large PCBs and require a powerful, precise, and gentle preheating method for SMD BGA solder repair.
Pros and Cons
Pros:
- Powerful 1600W heating for quick results.
- Large work area suitable for big PCBs.
- Infrared heating prevents component shifting.
- Precise PID control ensures stable temperatures.
Cons:
- Dedicated preheater, not an all-in-one solution.
- May be overkill for very small, occasional repairs.
Customer Reviews
Customer Review: “It combines precision and stability – a tool with excellent temperature control saves a lot of hassle.” – R. Chen
Customer Review: “This IR preheater is a beast! I’ve been struggling with larger PCB repairs, but the T8280 handles them like a champ. The even heat is noticeable, and I’ve had much better success with my motherboard rework projects.” – PCBPro
Complete Buying Guide for Best Bga Rework Stations
Essential Factors We Consider
When selecting a BGA rework station, several factors come into play beyond just price. First, consider the type of heating technology. Hot air rework stations are common and versatile, using forced hot air for desoldering and soldering. Infrared (IR) rework stations, on the other hand, provide a more uniform and gentle heat, reducing the risk of component displacement and thermal shock, especially for larger or more sensitive chips. Many stations combine these, or offer a preheating plate for a more controlled bottom heat. Second, temperature control and stability are paramount. Look for stations with PID control, which ensures precise and stable temperatures throughout the rework process. Digital displays and intuitive controls are also a plus. Third, evaluate the power and heating area. Higher wattage usually means faster heat-up times and the ability to handle larger PCBs. The size of the preheating plate or working area should match the size of the circuit boards you typically work with. Lastly, ESD (Electrostatic Discharge) safety is crucial to protect sensitive electronic components from damage. Ensure the station and its accessories are ESD-safe.
Budget Planning
Setting a realistic budget is important when shopping for the best BGA rework station. Entry-level hot air stations can start from around $100-$200, offering basic functionality suitable for hobbyists or occasional small repairs. Mid-range stations, priced between $200-$600, often include integrated features like soldering irons, preheating plates, and more precise controls, providing excellent value for serious hobbyists and small repair shops. High-end professional-grade systems, which can cost $600 to upwards of $1000+, offer advanced IR heating, larger working areas, automated profiles, and superior build quality for industrial or frequent, complex rework tasks. Remember to factor in the cost of consumables like solder paste, flux, and specialized nozzles when planning your budget. Sometimes, investing a little more upfront in a durable, feature-rich station can save you money and headaches in the long run by preventing damage to expensive components.
Final Thoughts
Choosing the right BGA rework station is a decision that significantly impacts the quality and efficiency of your electronics repair work. Whether you’re a beginner dabbling in DIY repairs or a seasoned professional tackling intricate BGA chips on delicate motherboards and graphics cards, there’s a station out there that fits your needs. Prioritize features like precise temperature control, appropriate heating technology (hot air or IR), an adequately sized work area, and essential safety features like ESD protection. A good rework station isn’t just a tool; it’s an investment in your skills and the longevity of your electronics projects. Take the time to consider your specific needs, compare the options, and you’ll find a station that empowers you to perform successful, high-quality rework with confidence.
Frequently Asked Questions
Q: What is a BGA rework station used for?
A: A BGA rework station is specifically designed to desolder, resolder, and reball Ball Grid Array (BGA) components on printed circuit boards (PCBs). These components, commonly found in modern electronics like laptops, smartphones, and game consoles, have solder balls underneath the chip, making traditional soldering methods impossible. Rework stations provide controlled heating to precisely melt and reform these solder connections without damaging the component or the PCB.
Q: What’s the difference between hot air and infrared (IR) BGA rework stations?
A: Hot air rework stations use forced hot air to heat components, offering quick temperature changes and direct application, but they can sometimes cause smaller components to shift or lead to uneven heating on larger BGAs. Infrared (IR) rework stations use infrared radiation to heat the components more gently and uniformly, reducing the risk of component movement and thermal stress, which is often preferred for very sensitive or large BGA chips. Many modern stations combine both technologies or offer integrated preheating.
Q: Do I need a preheating plate for BGA rework?
A: Yes, a preheating plate is highly recommended, if not essential, for successful BGA rework. It provides uniform bottom-side heat to the PCB, reducing the temperature difference between the top and bottom of the board during rework. This minimizes thermal stress, prevents PCB warping, and allows the top-side heat (from a hot air gun or IR emitter) to be applied at a lower, safer temperature, thus protecting components from overheating.
Q: Can a regular soldering iron or hot air gun be used for BGA rework?
A: While a basic hot air gun can remove some larger SMD components, it’s generally not suitable for proper BGA rework. BGA components require precise temperature profiles and uniform heating across the entire array of solder balls, which a handheld hot air gun cannot consistently provide. A regular soldering iron is completely ineffective for BGA components due to their hidden solder connections. A dedicated BGA rework station, with its controlled heating and often a preheating element, is necessary for reliable and safe BGA repair.
Q: What safety precautions should I take when using a BGA rework station?
A: Always work in a well-ventilated area to avoid inhaling solder fumes. Wear appropriate personal protective equipment (PPE) such as safety glasses to protect your eyes and heat-resistant gloves. Ensure your station is properly grounded to prevent electrostatic discharge (ESD) damage to sensitive components. Allow components and the board to cool down sufficiently before handling. Read your specific station’s manual carefully for all safety guidelines.
And there you have it, our comprehensive guide and top picks for the best BGA rework stations! We understand that diving into intricate electronics repair, especially with BGA components, can feel daunting. But with the right tools, you’ll gain the confidence to tackle even the most challenging projects. Whether you prioritize an all-in-one solution for versatility or a dedicated preheating plate for precision, there’s a perfect station waiting for you. Remember, investing in quality equipment not only makes your work easier but also protects your valuable electronics. So go ahead, choose the station that best fits your needs, and get ready to elevate your repair skills!
Happy soldering and repairing!
